NAD
A/V Receivers

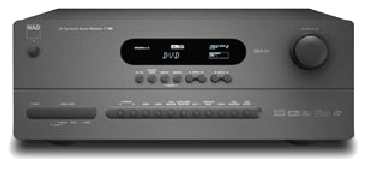

T763
6 x 100W
Simultaneous Minimum Continuous Power into 4 / 8 ohms
210W, 300W, 370W IHF Dynamic Power into 8, 4 and 2 ohms,
respectively
PowerDrive™
High Current Holmgren™ Toroidal Power Transformer
Dolby Digital, Dolby Digital EX, ProLogic II, DTS, DTS
ES, DTS NEO:6, Matrix 7.1, EARS and Enhanced
Stereo
HDCD®
Stereo Bypass
5 A/V Custom Presets store unique speaker level and tone
control settings
Direct access speaker level adjustment for surround,
center and subwoofer
6 A/V Inputs all S-Video and Composite, 2 full tape loops
Component Video, 3 Inputs and 1 Output, HDTV Compatible
3 Audio Inputs, 1 Tape Loop
6 Digital Inputs, 4 Coaxial, 2 TOS Link freely assignable
2 Digital Outputs, 1 Coaxial, 1 TOS Link
7.1 Analogue Input (for DVD-Audio)
Speaker A + B switching (Speakers B stereo only)
Multi-Source 2nd zone A/V pre-out with independent source
and volume
ZR-2 Second Zone Remote included, discrete codes for
independent zone
2 x IR Outputs, One IR input
RS-232 port interface for advanced control systems
3 x 12V Trigger Outputs, 12V Trigger Input
IEC Detachable Power Cable
Preamp Outputs for all 7.1 channels (2 Subwoofers)
Amplifi er Input for 6 Power Amps
DS FM/AM Tuner with 30 direct access presets
NAD Soft Clipping™
HTR-2 - 8 Device Illuminated Learning Remote with Macro
function

T753
6
x 70W Simultaneous Minimum Continuous Power into 4 / 8
ohms
150W, 200W, 225W IHF Dynamic Power into 8, 4 and 2 ohms,
respectively
PowerDrive™
Dolby Digital, Dolby Digital EX, ProLogic II, DTS, DTS
ES, DTS NEO:6, Matrix 7.1, EARS and Enhanced Stereo
5 A/V Custom Presets store unique speaker level and tone
control settings
Direct access speaker level adjustment for surround,
center and subwoofer
Stereo Bypass
NAD Soft Clipping™
6 A/V Inputs all S-Video and Composite, 2 Full Tape Loops
Component Video, 2 Inputs and 1 Output, HDTV Compatible
1 Audio Tape Input and Output
6 Digital Inputs, 4 Coaxial, 2 TOS Link freely assignable
2 Digital Outputs, 1 Coaxial, 1 TOS Link
7.1 Analogue Input (for DVD-Audio)
Speaker A + B switching (Speakers B stereo only)
Multi-Source 2nd zone audio pre-out with independent
source and volume
ZR-2 Second Zone Remote included, discrete codes for
independent zone
IEC Detachable Power Cable
2 x IR Outputs, IR Input,
2 x 12V Trigger Outputs, 12V Trigger Input
Preamp Outputs for all 7.1 channels (2 Subwoofers)
Amplifier Input for 6 Power Amps
RDS FM/AM Tuner with 30 direct access presets
HTR-2 - 8 Device Illuminated Learning Remote with Macro
function
rol

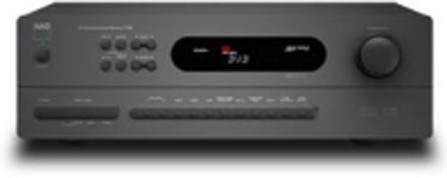

T743
5
x 50W Simultaneous Minimum Continuous Power into 4 / 8
ohms
105W, 145W, 165W IHF Dynamic Power into 8, 4 and 2 ohms,
respectively
Dolby Digital, DTS, ProLogic II, EARS and Enhanced Stereo
5 A/V Custom Presets store unique speaker level and tone
control settings
Direct access speaker level adjustment for surround,
center and subwoofer
Stereo Bypass
NAD Soft Clipping ™
6 A/V Inputs, 3 with S-Video, 2 Full Tape Loops
Component Video, 2 Inputs and 1 Output, HDTV Compatible
2 Audio Inputs, 1 Tape Output
6 Digital Inputs, 4 Coaxial, 2 TOS Link freely assignable
5.1 Analogue Input (for DVD-Audio)
Speaker A + B switching (Speakers B stereo only)
2 x IR Outputs, IR Input
2 x 12V Trigger Outputs, 12V Trigger Input
Preamp Outputs for all 5.1 channels (2 Subwoofers)
Amplifier Input for 3 amplifier channels
RDS FM/AM Tuner with 30 direct access presets
HTR-2 - 8 Device Illuminated Learning Remote with Macro
function
See also
the awesome NAD T163 preamplifier and T973 multi-channel
amplifier
DVD/Receiver system

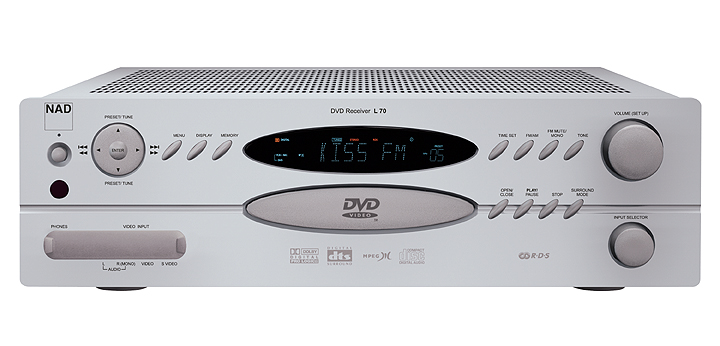

L70
5 x 45W Simultaneous
Continuous Output Power into 8 ohms, 2 x 60W in Stereo
mode, 82W IHF Dynamic Power into 8 ohms, Dolby Digital,
DTS, ProLogic II, EARS and Stereo Enhanced Surround
Modes, Plays DVD-Video, CD, CD-R, CD-RW, VCD, MP-3
decoder integrated, Full-size separate component
performance, Crystal Sigma-Delta ADCs and DACs with
96kHz/24 bit resolution, Subwoofer Output, Satellite and
VCR Inputs, 5.1 Input for future surround mode upgrades,
2 Digital Inputs: 1 RCA; 1 TOS Link, 2 S-Video Inputs and
1 S-Video output, VCR & TV Monitor Outputs including
Component, 1 TOS Link Digital Output, Auto switch from
PCM to Bitstream ï Audiophile quality DACs, RDS Tuner
(RDS PS & RDS RT), 30 Presets for AM and FM,
Component Video Output, All RCA sockets gold-plated,
HTR-2 Learning System Remote with illuminated keys
|
NAD
has for decades been known for producing very high
quality, award winning audio amplifiers featuring
superior sound and construction quality. The same
attention to detail and emphasis on sound quality has
resulted in an exceptional line of A/V receivers. Use of
the finest materials and straight-forward engineering has
arrived at last in NAD quality audio and
video performance from their flagship receiver, the T773.
Other models provide similar sonics from the legendary NAD
amplifiers, excellent build quality, and very reasonable
prices. Also
notable for those with space restrictions is the new L70
combination DVD player/5 channel receiver. All in one
capability for playing DVD movies with full 5.1 surround
sound as well as music CD's. Simply connect an
appropriate set of speakers and you are on your way to
enjoying great movies and music with minimal fuss and all
in an attractive, complete package.
Audition NAD with PowerDrive™.
Digital
Receivers

NAD

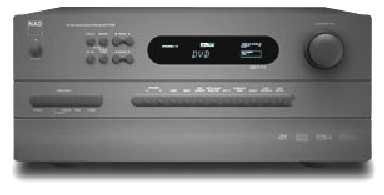

T773
7 x 110W
Minimum Continuous Power into 4 / 8 ohms, all channels
driven simultaneously
230W, 320W, 390W IHF Dynamic Power into 8, 4 & 2
ohms, respectively
PowerDrive™
High Current Holmgren™ Toroidal Power Transformer
Dolby Digital, Dolby Digital EX, ProLogic II, DTS, DTS
ES, DTS NEO:6, Matrix 7.1, EARS and Stereo Enhanced
Surround Modes
HDCD®
5 A/V Custom Presets Store Unique Settings
Direct access speaker level adjustment for surround,
center and subwoofer
6 A/V Inputs all S-Video and Composite, full tape loops
Component Video on 3 Inputs and 1 Output
3 Audio Inputs, 1 tape loop
6 Digital Inputs, 4 Coaxial, 2 TOS Link freely assignable
2 Digital Outputs, 1 Coaxial, 1 TOS Link
7.1 Analogue Input (for DVD Audio)
Speaker A + B switching (Speakers stereo only)
Multi-Source 2nd zone A/V pre-out with independent source
and volume
ZR-2 second Zone remote included discrete codes for
independent zone
NAD Soft Clipping™
IR Input
2 x IR Ouputs
RS-232 Port interface for advanced control systems and
software upgrade
3 x 12V Trigger Outputs
12V Trigger Input
Preamp Outputs for all 7.1 channels (2 Subwoofers)
Amplifi er Input for 7 Power Amps
RDS FM/AM Tuner with 30 direct access presets
HTR-2 Remote Control

|
