Jolida vacuum tube amplifiers

Jolida

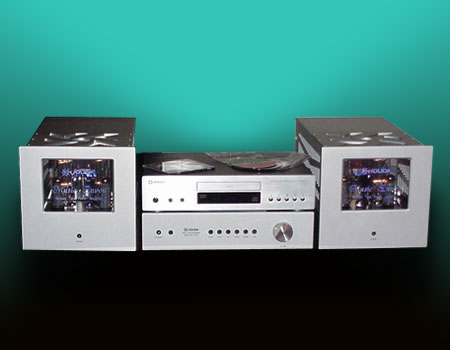

The Musical Envoy 200 Watt Tube System

3000A Monobock Power Amplifiers

Technical Specifications:
Rated Output Power:
200 W per channel at 8 ohms, 25Hz to 40KHz

Frequency Response:
(at 1 watt into 8 ohms) 14Hz to 50KHz + 1dB

Distortion THD:
Less than 1% at 150 W output, 21Hz to 28KHz

Circuit Type:
Ultra Linear, Class AB

Input Impedance:
100Kohms

Input Sensitivity:
2.35mV at 1KHz and 8 ohms for 200 watt output

Output Impedance:
4 and 8 ohms

Tube Complement:
2 pcs. 211 power output; 2 pcs. El34 power drivers, 2 pcs. 12AT7 power drivers

Power Requirements:
110V-120 VAC 60Hz 180 watts-standby, 850 watts maximum (220 VAC 50Hz option)

Dimensions:
11 in. W X 19 in. D X 10 3/4 in. H

Weight:
50 pounds (23 Kg) net, approximately 55 pounds (25 Kg) packaged

Warranty:
Two year limited parts and labor. One year or 1000 hours whichever comes first on Jolida Tubes.

3000B Vacuum Tube Preamplifier
A full feature remote control unit that has four inputs, a bypass input, a fixed RCA out, a variable pre out, a high gain output. Serves a a perfect mate for the monoblock.


Max Output Voltage:
20 V

Voltage Gain:
20 dB

Frequency Response:
5Hz to 110KHz, 10 V

Distortion THD:
Less than 1%; 1 KHz, 10 V

Input Impedance:
100Kohms

Output Impedance:
600 ohms

Tube Complement:
2 pcs. 12AX7; 2 pcs. 12AT7

Dimensions:
17 1/2 in. W X 12 in. D X 4 1/4 in. H
