Jolida 3 channel hybrid tube amp

with input level controls

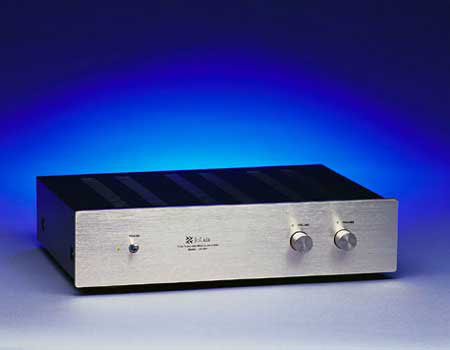

Jolida JD1703A

Technical Specifications:
Rated Output Power:
75 W per channel at 8 ohms, 22Hz to 19KHz

Frequency Response:
(at 1 watt into 8 ohms) 5Hz to 100KHz + 1dB
Bandwidth:
22Hz to 19kHz + 3dB; 0dB 65 W 1KHz

Distortion THD:
< 0.1% at 65 W output, 22Hz to 18KHz

Input Impedance:
47Kohms

Input Sensitivity:
500mV at 1KHz and 8 ohms for 75 watt output
Noise and Hum:
90dB below rated output

Tube Complement:
3 pcs. 12AX7 for the preamplifier

Power Requirements:
110V-120 VAC 60Hz 180 watts-standby, 450 watts maximum (220 VAC 50Hz option).

Dimensions:
17 inches wide by 13 inches deep by 4.5 inches high.
Weight:
35 pounds net, approximately 37 pounds packaged.

Warranty:
18 months limited parts and labor. Six months or 1000 hours whichever comes first on Jolida Tubes.

Fuse:
110 - 120 VAC, 3.5 Amp Fast Blo; 200 - 240 VAC, 3.5 Amp Fast Blo
